產品簡介

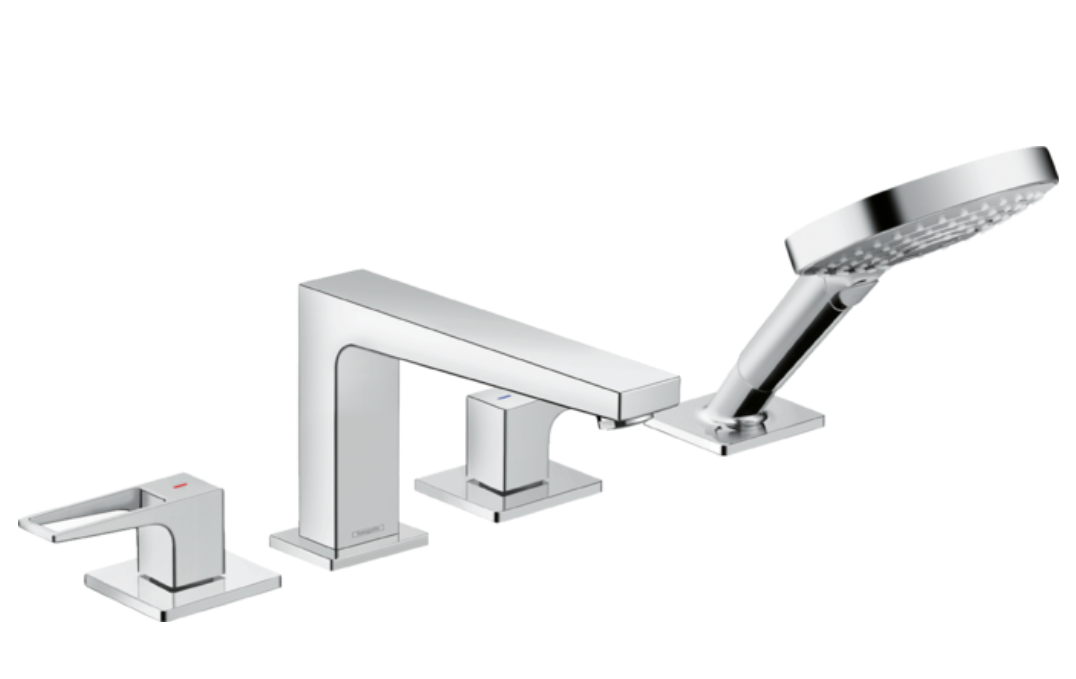

consists of: 4-hole rim mounted bath mixer, hand shower, shower holder
2 functions
projection: 197 mm
spray type mixer: normal spray
spray type hand shower: Rain, RainAir, Whirl
maximum pull-out length of hand shower: 1.10 m
maximum flow rate at 3 bar: 24 l/min
flow rate for bath spout at 3 bar: 24 l/min
flow rate of hand shower at 3 bar: 15 l/min
ceramic valves hot/cold 90°
connection type: basic set
min. operating pressure: 1 bar
max. operating pressure: 10 bar
